51.2V 100Ah 5kWh LiFePO4 Battery Solar Generator Lithium Battery for Home Power Backup with Long Cycle Life and BMS Protection

From LFP cells to integrated ESS — full-spectrum lithium battery solutions engineered for reliability, safety and performance

51.2V 100Ah 5kWh LiFePO4 Battery Solar Generator Lithium Battery for Home Power Backup with Long Cycle Life and BMS Protection

51.2V 100Ah 5kWh LiFePO4 Battery Solar Generator Lithium Battery for Home Power Backup with Long Cycle Life and BMS Protection

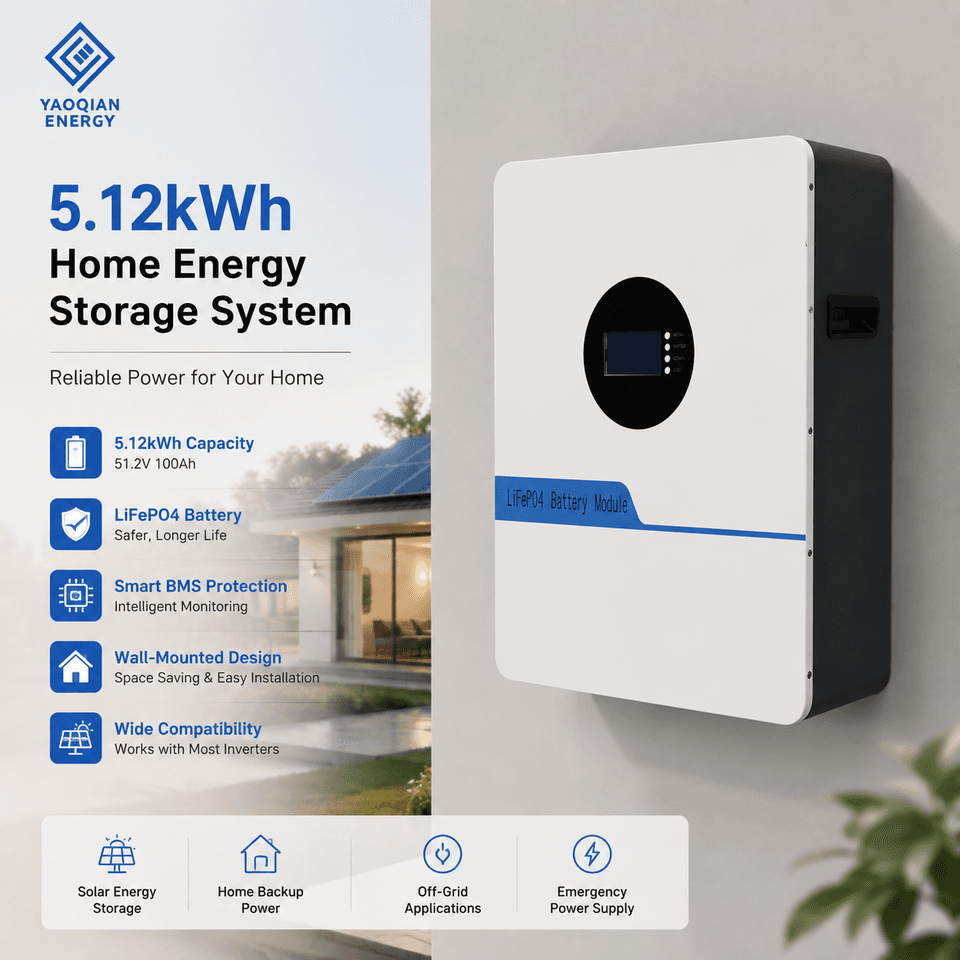

5.12kWh LiFePO₄ home energy storage system with smart BMS, wall-mounted design, and wide inverter compatibility for reliable home backup power.

Specifications

Model

YQ-100W-LV

Nominal Voltage

51.2V

Nominal Capacity @ 1C

102Ah

Equalized Charge Voltage

58.4V

Discharge Cut-off Voltage

46V

Float Voltage

54V

Bulk Voltage

55.2–56.8V

Discharge Current Max Continuous

100A

Peak current 5 Min

200A

Weight

47 ± 0.3Kg

Dimensions

580*470*180mm

Key Features

1.Grade A LiFePO4 Cells

High safety, excellent thermal stability, and long service life.

2.Intelligent Built-in BMS

Provides protection against overcharge, over-discharge, over-current, short circuit, and overheating.

3.Long Cycle Life

More than 6,000 charge/discharge cycles for reduced maintenance and lower lifetime cost.

4.High Charging & Discharging Efficiency

Supports continuous 100A discharge with stable power output.

5.Wide Compatibility

Compatible with most mainstream hybrid and off-grid inverters.

6.Easy Installation

Compact wall-mounted design saves installation space and simplifies deployment.
